Portable Boring Machine: When to use it and How to use

When to use the Portable Boring Machine?

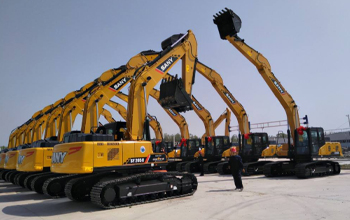

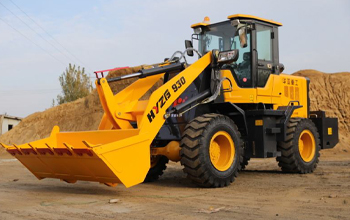

The boring machine can repair the revolving holes, hinge holes, and post-welding processing of the shaft pin holes on various construction machinery structures, or add hole sleeves after reaming, such as concentric holes such as excavators, loaders, presses, and cranes. For the repair and processing, the holes are arranged side by side, and the holes are positioned and processed at one time to ensure the coaxiality of the holes.

Under long-term operation, these parts are worn: Motor head, bucket, boom root, oil cylinder base.

Use the boring machine and welding machine to repair the worn parts and restore them to normal operation.

The boring machine is the best construction machinery maintenance equipment at present. The operation of the equipment only needs one person. The equipment is based on "On-Site Processing Service" from the design concept to the processing. The actual operation difficulty of the workers is greatly reduced, making the maintenance personnel handier.

How to use the Portable Boring Machine?

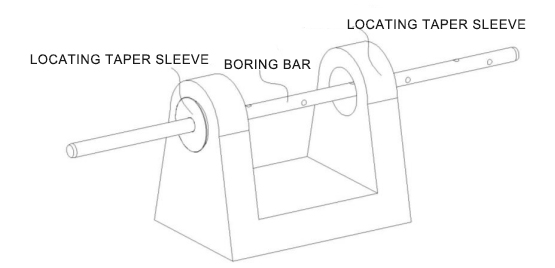

Fixed seat can be installed in position allowing work piece welding. Push the boring bar into the hole requiring processing with nylon locating taper sleeve, and lock the locating boring bar with tool rest on both sides to ensure the concentricity of the two holes.

Fit supports into the boring bar, and weld these two supports in the appropriate position of work piece.

Take off the locating taper sleeve (please ensure that the boring bar can rotate and slip axially freely).

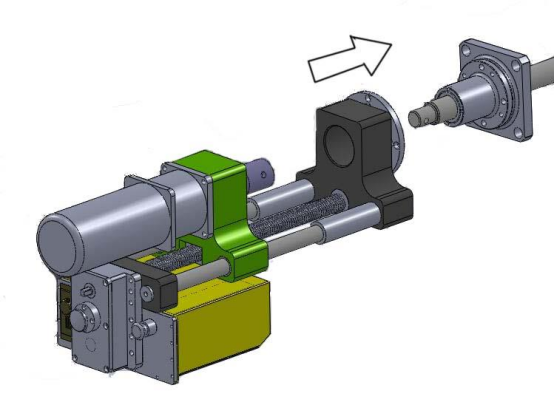

Installation Of The Main Body

• Fit the main body into support

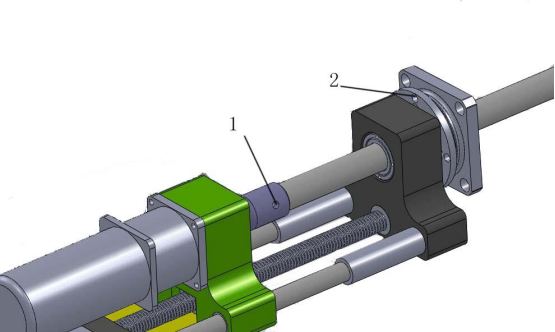

• Connect the main body with support at spot 1 and spot 2, respectively.

• Use M10×65 bolts to connect at spot 1, and the connection must be firm.

• Three bolts will be used in connection at spot 2 firmly.

Steps and Safety Reminders:

1. The operator should accept safety education and operation training, and have machining experience.




2. Work clothes and protective glasses have to be worn before operating the machine.




3. Check if the connected power voltage is consistent with the voltage required in the nameplate before starting up.




4. Check if the card mount system has been locked before starting up.




5. Pull the work piece in alignment, or align the work piece at the minimum speed. Alignment at high speed is not allowed.




6. Do not put hands or other things close to the equipment before starting up to avoid personal injury.




7. The electric wire should be far away from the place with high temperatures, oil, or sharp edge.




8. Turn off the power by remote control when failure or abnormal sound occurs before inspection and repair.




9. Do not operate the machine in unattended condition. Personal can only leave the site after confirming the drive system is in the neutral position and turning off the power when the machine stops operation.




10. It is strictly prohibited to use this machine in a processing range exceeding or lower than the noted range. Otherwise, our company will not take any responsibility for the consequences caused by such an operation.




11. The machine should not exceed the regulated maximum cutting capacity to avoid damage and personal injury caused by machine.




12. It is strictly prohibited to directly change the feeding direction after the machine operates.



13. After processing, oil and filings on the machine should be removed, and slushing oil should be sprayed on the tool arm and principal axis.
