How Much Can Portable Boring Machines Contribute to Construction Machinery Repair Sites?‌

During routine use of construction machinery, articulation points on excavator booms, loader arms, and crane frames endure cyclic loads and abrasive wear. Pin holes often develop issues like loss of roundness, enlargement, or unilateral wear. Transporting large structural components to machining workshops for repair incurs high costs and prolonged downtime. Portable boring machines address these on-site needs, enabling hole restoration without disassembling host equipment. Xinda Portable Machine Tool Co., Ltd.’s XDT series covers diverse bore sizes for field machining.

I. In-Situ Machining: Minimizing Disassembly & Transport

Portable boring machines use fixed clamping—aligning coaxially with target holes via support bases and centering cones—to perform boring directly on-site. Eliminating the need to remove buckets, booms, or frames dramatically shortens repair cycles. Xinda’s machines excel at:

Machining pivot/hinge/pin holes post-welding or after sleeving enlarged bores.

Single-setup multi-hole boring for critical coaxial accuracy in articulation systems.

Key Considerations:‌

For medium excavators or wheel loaders, prioritize models covering common pin holes (e.g., 45–260mm or 65–500mm), balancing frequency and portability.

II. Dual-Process Flexibility: Welding-Boring vs. Sleeving

Two primary repair approaches:

Build-up Welding + Boring:‌

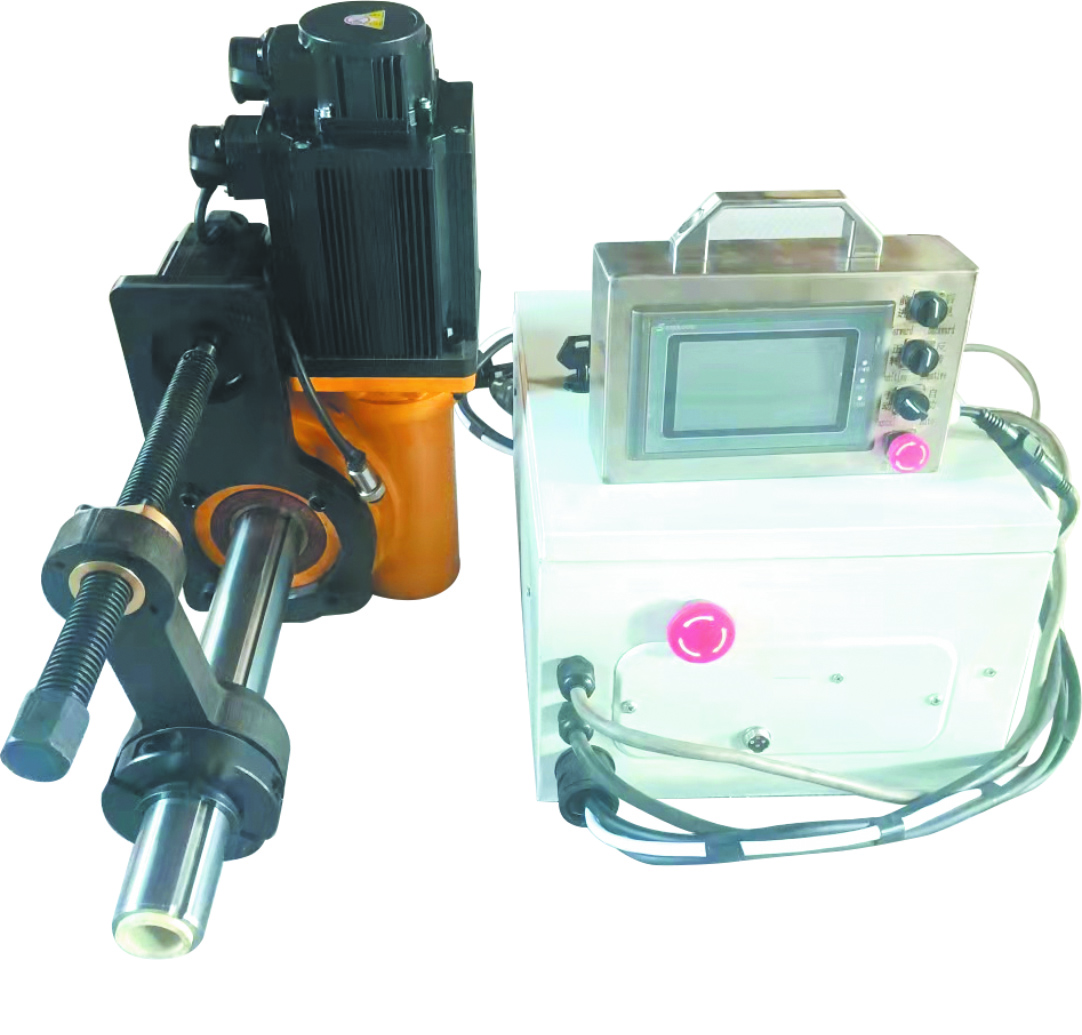

Deposit weld material in worn holes, then rebore to original specs. The XDT50 optionally integrates welding guidance (requires external MIG350+ CO₂ gas welder).

Enlarging + Sleeving:‌

For severe/multi-repair holes, bore to next oversize and press-fit a sleeve. Opt for XDT60 (65–500mm bore, 60mm bar) or XDT90 (95–800mm) for larger holes.

XDT series achieves ≤0.05mm roundness and Ra≤3.2 surface roughness, meeting most articulation requirements.

Key Considerations:‌

Specify common bore sizes, welding needs, and power stability (220V/380V) for model/electrical matching.

III. Single-Operator Adaptability

Designed for field efficiency:

One-person operation after brief training (centering, clamping, feeding, tool changes).

Manual feed (XDT40/50/60); manual/auto feed (XDT90); remote handles on larger models.

Interchangeable boring bars/supports/tool holders. Standard kit includes hex keys, wrenches, inserts, and fasteners.

Yellow default color (customizable); modular components for confined spaces (mines, remote sites).

Key Considerations:‌

For lift-free environments, verify component weight and modularity.

Request training materials/videos for shift teams.

Conclusion

Portable boring machines deliver three core benefits:

Slashing disassembly/transport costs.

Minimizing downtime.

Restoring articulation precision to extend component life.

For workshops frequently addressing pin hole wear, investing in a bore-matched Xinda machine is pragmatic. Request brochures or sample inspections as needed.

(Based on public enterprise data; specifics subject to official releases.)
